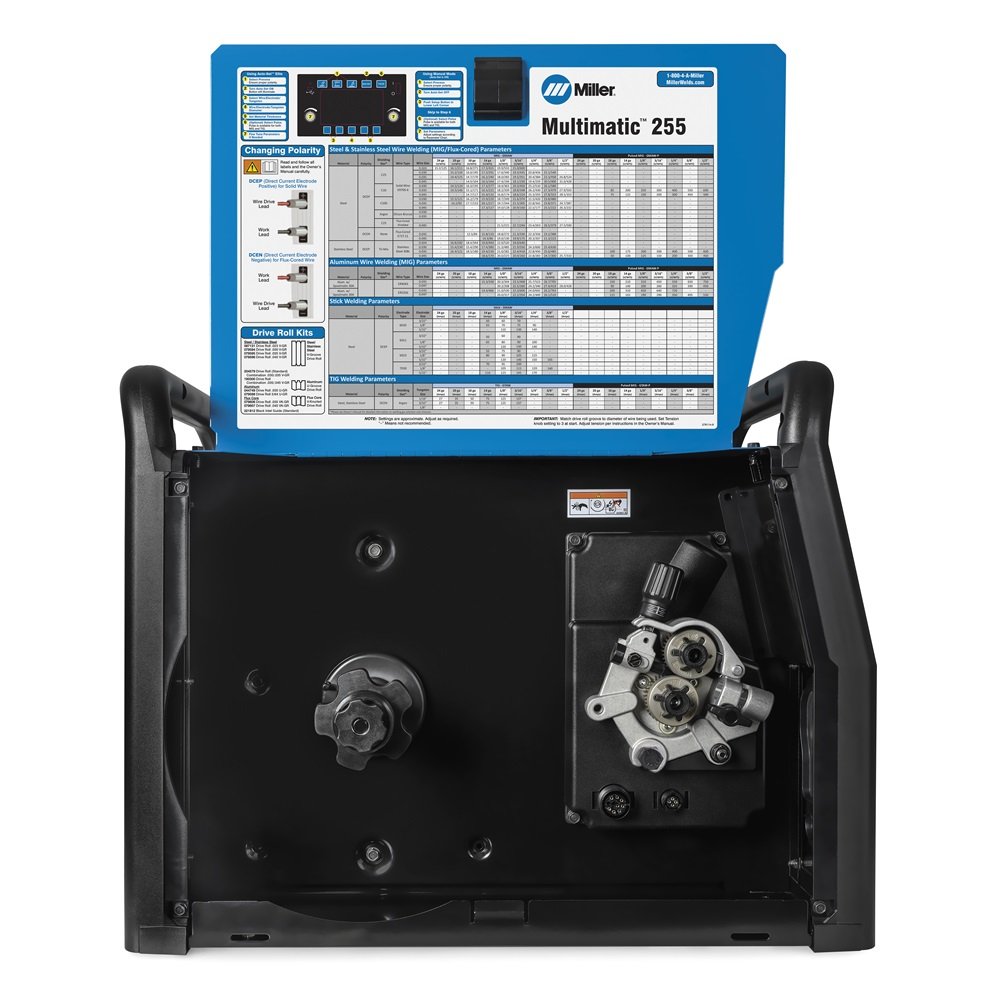

Miller Multimatic 255 Multiprocess Welder - 208-575V
Built for professionals in the MRO and light manufacturing/fabrication segments who want a smaller, versatile multiprocess welder with intuitive setup to increase efficiencies and productivity.
-
- Power source with 10 ft. (3 m) power cord
- 15 ft. (4.5 m) 250-amp MDX-250 MIG gun w/ Bernard AccuLock MDX consumables for .030/.035 in. (0.8/0.9 mm) wire
- 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
- 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
- Flow gauge regulator and gas hose for argon or AR/CO2 mix
- Extra contact tips
- .035/.045 in. (0.9/1.2 mm) reversible drive rolls
- Material Thickness Gauge -
Generator Compatible -
The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.
Versatility -
Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG.
Easy-to-understand interface -
7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Pulsed MIG welding delivers higher quality -
Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
Auto-Set Elite -
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Program mode allows easy save and recall of favorite weld settings -
Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
MDX-250 MIG Gun w/ AccuLock S consumables -
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
Portability - Machine only weighs 84 lb
Weight is reduced by more than 50 percent compared to transformer welding machines.
Optional EZ-Latch running gear -
Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability -
Processes - Aluminum Welding, Flux Cored (FCAW), MIG (GMAW), Multiprocess, Stick (SMAW), TIG DC (GTAW-DC)
Industries Interests - Auto Repair, Boat / Yacht, Commercial Truck and Trailer, Construction, Education / Training, Fabrication, Farm and Ranch, Maintenance and Repair - Field Operations, Maintenance and Repair - In Plant, Manufacturing, Metal Art, Racing / Customizing / Restoring
Amperage - 5A - 350A
Material Thickness - Mild Steel 22 ga. - 1/2 in. (MIG), Mild Steel 24 ga. - 3/8 in. (TIG), Mild Steel 16 ga. - 5/16 in. (Stick), Aluminum 18 ga. - 1/2 in. (MIG)
Weldable Metals - Aluminum, Stainless Steel, Steel
Input Voltage - 208 V, 220/230/240 V, 460/480 V, 575 V
Input Phase - 1-Phase
Input Hz - 50/60 Hz
Input Amperage - 34.7
Current Type - DC
Max Open Circuit Voltage - 81 VDC
Portability - Handle(s), Running Gear / Cart (Optional)
Weld Output - CC / CV
Warranty - 3 Years Miller's True Blue Warranty
