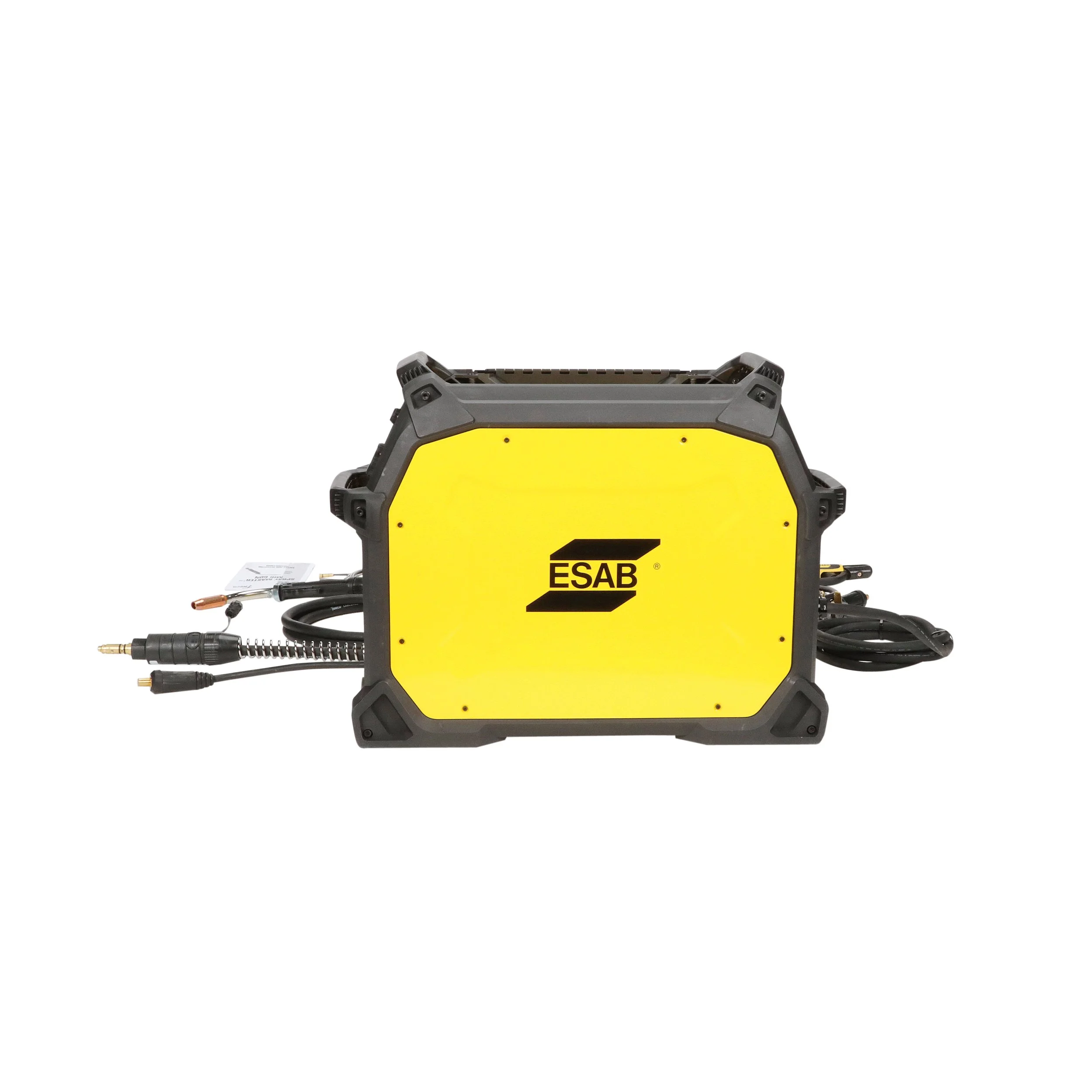

ESAB Rebel EMP 235ic

$0.00

The bigger, badder Rebel EMP 235ic is the only true multi-process welder in its category, and it's ideal for applications that require MIG, gasless, and gas-shielded Flux-Cored wire, Stick, and TIG. And weighing in at only 53 pounds with an output rating of 235 A, it has a power-to-weight ratio that crushes the competition. With capability to weld the full range of .035 solid wire, you'll be blown away by its increased productivity and deposition rates.

This multi-process machine is packed with Rebel DNA, which is found in every Rebel machine. Features like sMIG technology (now extended to .045 solid wires), an industrial package that fits 12-inch spools, dual voltage capability, and a four-handle roll cage design all make Rebel 235 and its fellow Rebels rise above the rest.

The bigger, badder Rebel EMP 235ic is the only true multi-process welder in its category, and it's ideal for applications that require MIG, gasless, and gas-shielded Flux-Cored wire, Stick, and TIG. And weighing in at only 53 pounds with an output rating of 235 A, it has a power-to-weight ratio that crushes the competition. With capability to weld the full range of .035 solid wire, you'll be blown away by its increased productivity and deposition rates.

This multi-process machine is packed with Rebel DNA, which is found in every Rebel machine. Features like sMIG technology (now extended to .045 solid wires), an industrial package that fits 12-inch spools, dual voltage capability, and a four-handle roll cage design all make Rebel 235 and its fellow Rebels rise above the rest.


Equipment Repair
Download Spec Sheet
Equipment Rental


  • - Rebel EMP 235ic Power Source
    - 15-foot Tweco Spraymaster 250 MIG gun
    - 10-foot Tweco 200A electrode holder
    - 10-foot Tweco ground clamp with leads
    - Victor argon flow gauge regulator with 12.5-foot gas hose (0781-2743)
    - Ten general purpose 7018 stick electrodes
    - ESAB 70S-6 .035 10-lb spool of wire
    - Spare nozzle (22 series), diffuser , and 2 contact tips
    - Drive Rolls: .023/.030 smooth (7977036) | .030/.035 V-knurled (7977732) |.045 V-knurled
    - Material thickness guide
    - Spare .035 conduit liner
    - 120V and 230V plugs

  • Unmatched Portability.
    Rebel EMP 235ic goes where you go. And that's priceless in today's demanding industries. With four perfectly placed handles and the ability to detach the power source from its cart, you can tackle any job, anywhere, with dual voltage capability from 90 V to 270 V. From shop to field, the rugged unibody steel industrial housing gives you the confidence that Rebel 235 can handle even the most demanding environments.

    The Power To Perform.
    When it comes to portable welders, small means weak, right? Dead wrong. Single-phase Rebel EMP 235ic is packed with the power to weld up to a half inch on mild steel, measuring in at 235 A at 40% duty cycle with a max output of 250 A/30 V.

    Versatility That Can't Be Beat.
    Your options are now open with the ability to weld a wide range of metal thicknesses and applications, including the full range of .035 in both short arc and spray arc transfer, up to .045 solid wires, and up to .052 cored wires. Plus, Rebel EMP 235ic can also weld Stick rods up to 5/32 in. and TIG rods up to 3/16 in.

  • Voltage - 120, 208/230 VAC 1, 50/60 Hz
    Max Output - 250 A / 30 V
    Stick (SMAW) Welding Output
    - 90 A / 23.6 V (120V) @ 40 % Duty Cycle
    - 210 A / 28.4 V (230V) @ 25 % Duty Cycle
    TIG (GTAW) Welding Output
    - 130 A / 15.2 V (120V) @ 40 % Duty Cycle
    - 240 A / 19.6 V (230V) @ 40 % Duty Cycle
    MIG (GMAW/FCAW) Welding Output
    - 120 A / 19 V (120V) @ 40 % Duty Cycle
    - 235 A / 26 V (230V) @ 40 % Duty Cycle
    Current Range
    - 5-150 A
    - 5-250 A
    Voltage Range - 90-270 VAC
    Wire Feeder Specifications - 1.5-18 m/min ( 60-700 in./min )
    Open Circuit Voltage - 90 VDC
    Use With Welding Material - 12.7 mm (1/2 in.)
    Aluminum - 0.8-1.2 mm ( .030-.047 in. )
    Flux Cored - 0.8-1.4 mm ( .030-.052 in. )
    Stainless Steel - 0.8-1.2 mm ( .030-.045 in. )
    Mild Steel - 0.6-1.2 mm ( .024-.045 in. )
    Max Spool Diameter - 100, 200 & 300 mm ( 4, 8 & 12 in. )
    Standards - CSA E60974-1-00 / UL60974-1 / IEC60974-1
    Protection Class - IP23S
    Supply Plug - 230 V, NEMA 6-50P
    Dimensions, L x W x H - 686 x 292 x 495 mm ( 26.5 x 11.5 x 19.5 in. )
    Weight - 28.6 kg ( 63 lbs )
